| Models | DW- 200W DW-400W |
| Xenon lamp | 1pcs 2pcs |
| Power Supply | 220V(For 200W)/ 380V(For 400W)±10%,50Hz/60Hz |
| Laser Type | Nd:YAG Pulsed |
| Laser Spot | 0.2-0.3mm |
| Wavelength | 1064nm |
| Pulse Width | 0.5-25ms |
| Max. Average Power | 200W 400w |
| Pulse Frequency | 0-100Hz |
| Water Cooling System | Bingyue 1.8KW chiller Bingyue 2.8KW chiller |
| Protective Gas | Argon |
| Welding Wire Dimension | 0.1-1.0mm |
| Whole Power | 7KW 12Kw |
Note: If your materials is special, dont know which type laser works ,please send it to us to test free.
● Using the anti- erosive, high-temperature resistant and ceramic reflector cavity,life-span of the cavity up to 8-10 years, and that of the Xenon more than 8 million times.
● Adopting the most advanced auto light-shielding system in the word to prevent the Laser from stimulating your eyes.

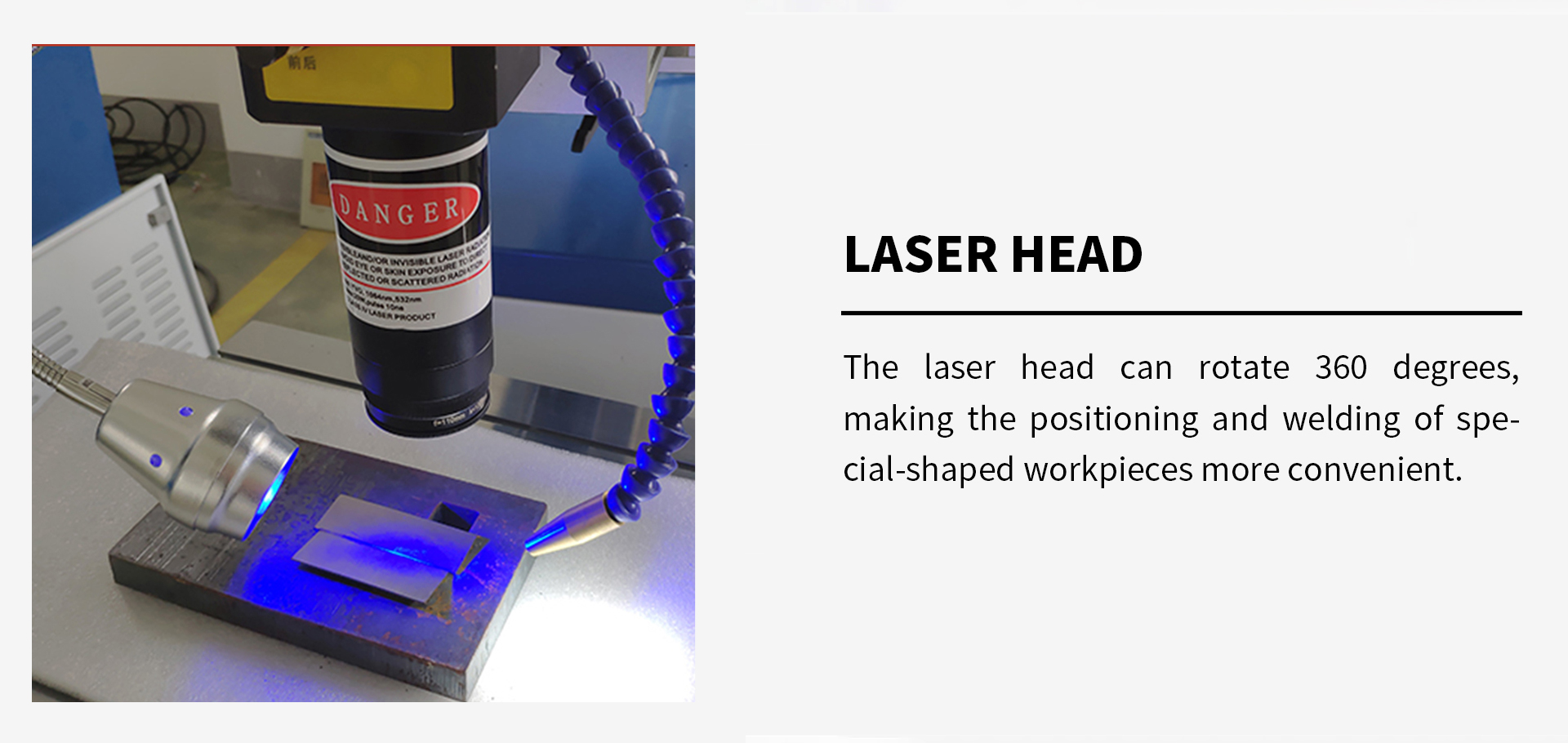

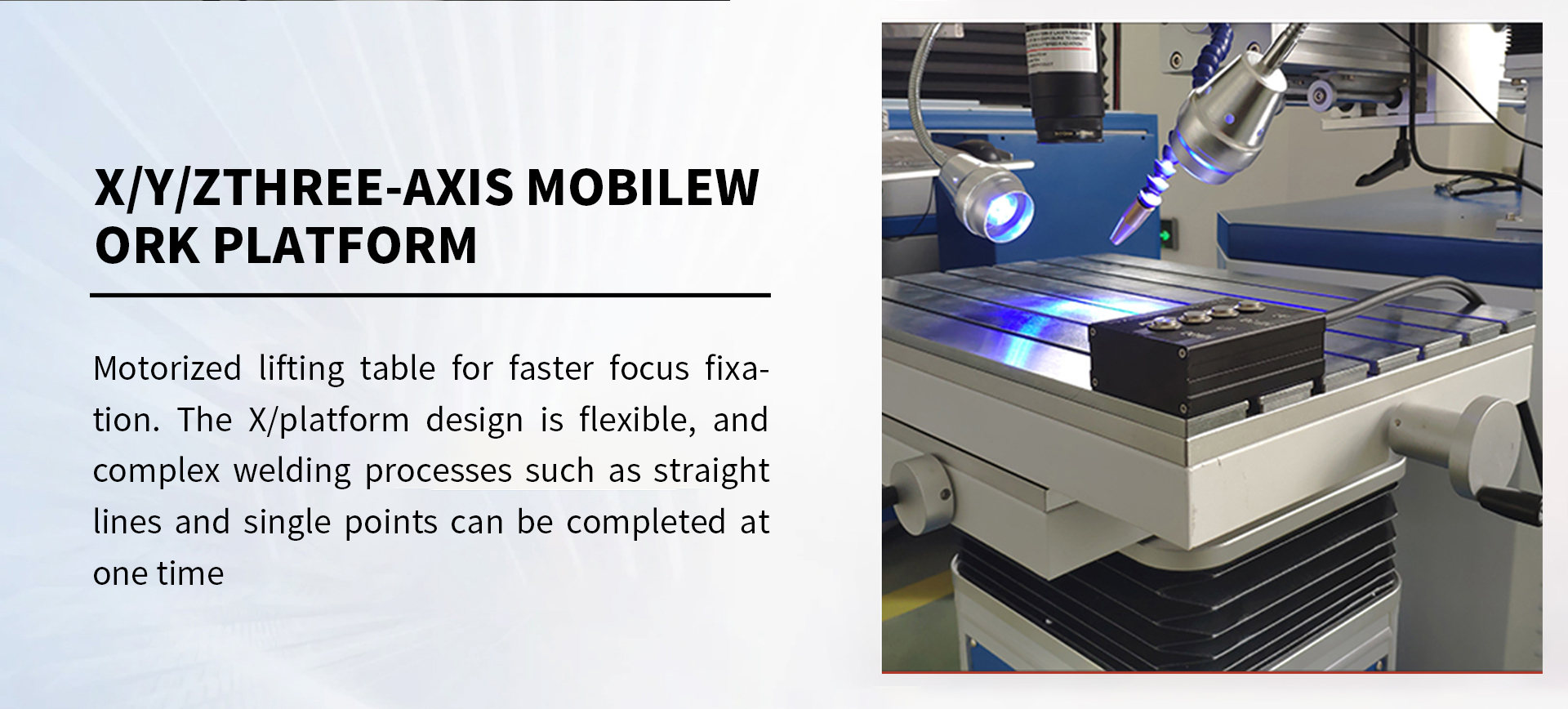

● The Laser head can rotate 360 degrees, and it uses the electric lift and drives horizontally.Electrical working table (XYZ) and laser path

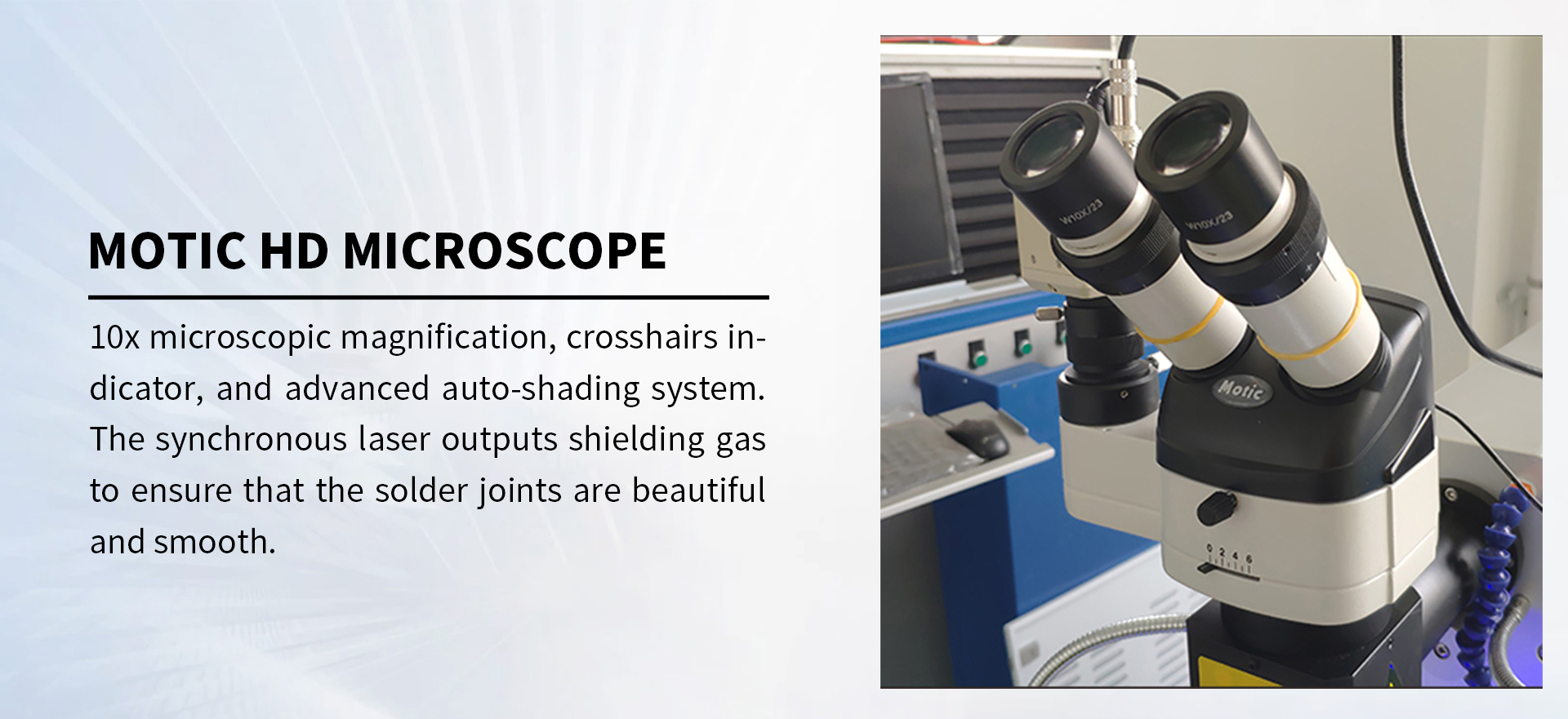

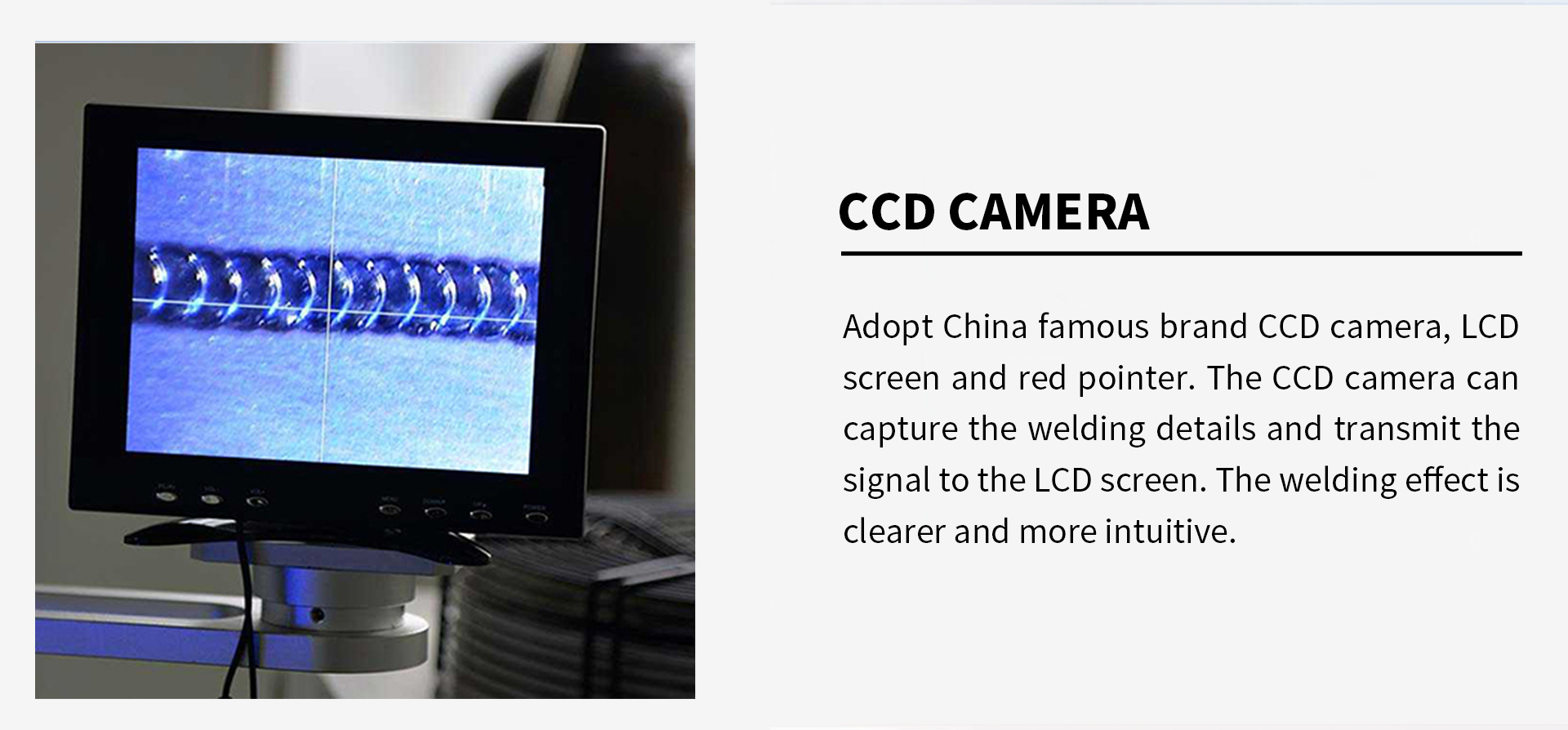

● Offer both Motic Brand Microscope and CCD viewing system..
● Auto wire feeder and Rotary (optional).
Mold welding machines have been widely used in the manufacturing industries of automobiles, home appliances, building materials and other industries.
In the automobile industry, mold welding machines can be used to repair and reinforce important parts such as automobile bodies, door panels, exhaust pipes, chassis components and frames;
In the electronics industry, mold welding machines can be used for the maintenance and repair of products such as LCD monitors, mobile phone cases, and computer cases;
In the building materials industry, mainly for the repair and reinforcement of metal skeletons, wire mesh and other building materials, such as steel bar welding, industrial pipeline connections, etc.
Dowin Technology Co., Ltd. has its own R & D team and business team, with CE , FDA ETC certificate for EU and USA countries , machine and software all install and test well before delivery , only need to connect the big parts like chiller , working table , electricity etc , manual , video and technician online support all available , make sure your machine work well after received , you can trust us , work with dowin laser , your machine quality and money is safe with us !!!!
